Valve comparative

This tables are comparatives of different model configurations

Run 4 seconds

Valve Configuration	DP*	V(m/s)	Vorticity (max)	K (max)	Omega (max)
New return 23e	1400	51	7.9e5
New return 23e Rev 2	1300	50	6.3e5	2.9e-9	1e25
New return 23e Rev 2

Run 3 seconds

Valve Configuration	DP*	V(m/s)	Vorticity (max)	K (max)	Omega (max)
Conical	780	39	2.7e5	2.2e-9	9.5e24
Vortex return	830	39	1.8e5
New return 23e	810	38	1.1e5	2.0e-9	1e25
New return 23e Rev2	770	38	1.2e5	2.8e-9	1e25

Run 2 seconds

Valve Configuration	DP*	V(m/s)	Vorticity (max)	K (max)	Omega (max)
Conical	380	31	1.5e5	7.4e-10
Vortex return	400	27	1.2e5	2.2e-9
Conical variable	300	24	(2.1e5+1.1e5)/2	6.6 e -10
New return 23e	380	26	1.2e5	1.9e-9
New return 23e Rev 2	360	26	7.5e4	2.7e-9

Images

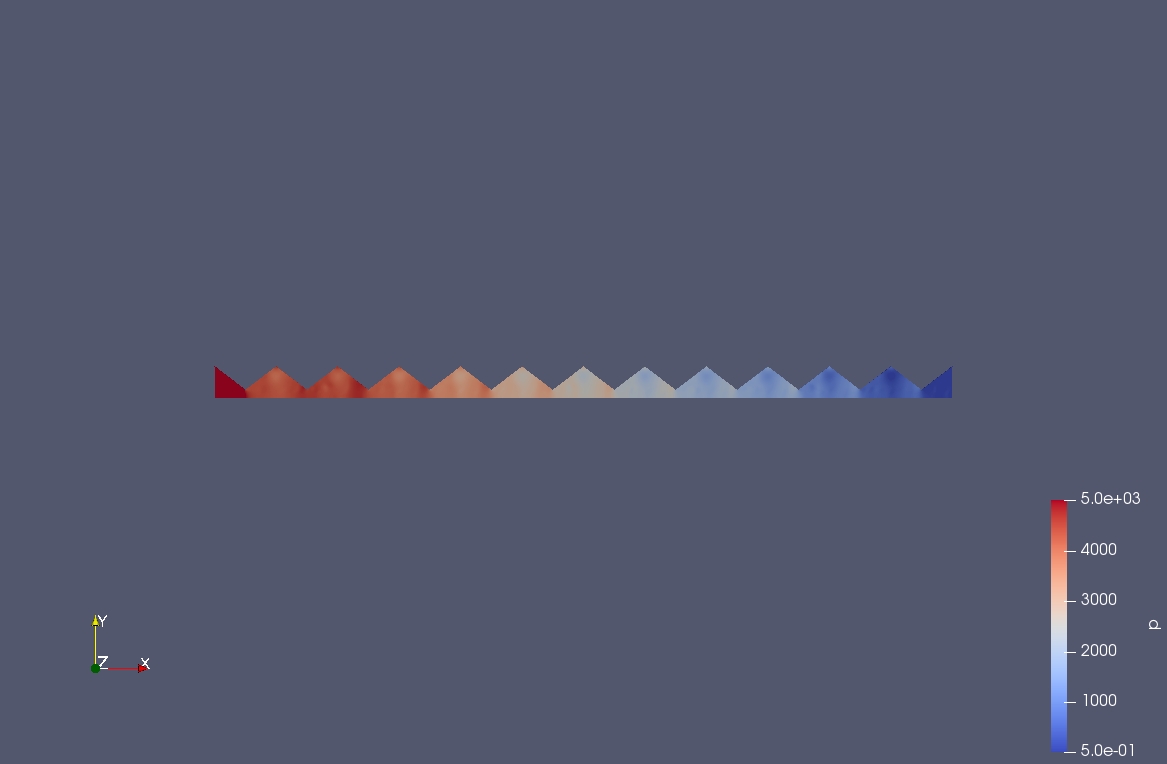

Conical geometry:
